9 Best Uses And Applications Of A Diaphragm Liquid Pump

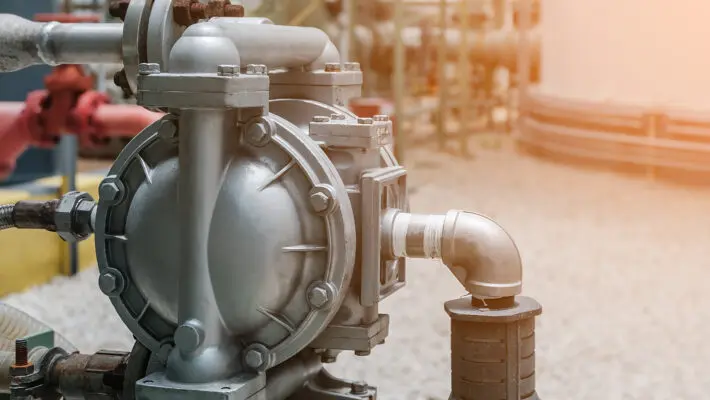

A diaphragm pump is a device classified as a displacement pump that uses the putting together of the similar reciprocal actions of thermoplastic, rubber, and other different diaphragm kinds to pump fluids.

Also referred to as membrane pumps, the pump works in such a way that a pair of flexible diaphragms make back and forth movements to create a temporary cavity that pumps in and releases out the liquid from the pump.

To function, the pair of diaphragms act as barriers between liquid and air. A piston pulls liquid into the pump when pulled back and out of the pump when pushed forward. A check valve is one way to ensure that fluid flows in the right direction through the chamber.

There’s a lot more to learn about the diaphragm liquid pump. The following are some advantages of diaphragm pumps:

  • They’re flexible in that they can run dry for quite a long time without being damaged. Diaphragm liquid pumps can also be completely submerged in liquids because of their fully sealed features.
  • Diaphragm pumps are said to be easy to use because of their simple design and construction. This makes them easy to assemble because they don’t require any close-fitting or rotating parts.
  • Diaphragm pumps are generally considered safe, for the only fuel they use is compressed air. No electricity or other fuel source is used, which could be risky to the workers who operate the pumps daily.
  • Diaphragm pumps are available in various materials, an attribute that makes it possible for them to cover a wide range of applications that are compatible with temperature and chemicals.
  • These pumps are easy to handle and can be moved around from one place to another. Unlike other pumps with electrical parts, they can easily be cleaned, fixed, and disassembled without any additional fuss.

Diaphragm pumps are used and applied in various ways. Continue reading to learn more.

Uses Of A Diaphragm Liquid Pump

Diaphragm liquid pumps are generally regarded as very useful apparatus pieces utilized in a plethora of means across almost every company and device maker you can think of. The following are said to be some of the practical uses of the said devices:

  1. Fluid Transfer

It’s believed that diaphragm liquid pumps have excellent chemical resistance and work well with abrasive materials. Both at low and high viscosity, the pumps can transfer a variety of liquids, including wastewater, oils, vehicle fluids, sludge mixtures, solvents, paints, inks, and dyes, among others, without any hitches at all.

  1. Food And Beverage Supplies Handling

In the case of beverages and food supplies management, sanitary diaphragm pumps that meet the ideal hygienic guidelines are used to transfer ingredients to facilitate the food production process. Well-maintained and properly cleaned diaphragm liquid pumps are attached and used in different pieces of machinery deployed in the food supply chain.

  1. Safe Pumping Of Chemicals

Diaphragm pumps are constructed in such a way that the pumping materials are matched with certain chemicals in order to achieve a better transfer quality. The availability of a wide range of pump materials allows the seamless transfer of any chemical.

  1. Accurate Metering

Diaphragm pumps are used for metering. Metering is a process through which diaphragm pumps move liquid volumes in a specific duration of time, resulting in an accurate volumetric flow rate.

Applications Of Diaphragm Liquid Pumps

Diaphragm pumps are employed in practically almost every device you may have used in your life – from varnish applicators and so much more. Curious about some of the best applications of diaphragm liquid pumps? Some are mentioned below:

  1. Treatment And Purification Of Water

Diaphragm liquid pumps are said to be versatile; hence, they can safely handle aggressive solvents, hazardous chemicals, as well as fluids with high viscosity.  The pumps are thus capable of cleaning contaminated water and purifying wastewater.

  1. Biopharmaceutical Processes

Biopharmaceutical industries use diaphragm valves to contain products for long periods. In addition, they’re comfortably used to transfer fluids efficiently and safely.

  1. Dairy Industry Functions

Diaphragm pumps are employed in dairy industries to transfer raw materials, empty drums, recirculation, mixing, and dosing, among others. The pumps are made from sanitary-grade elastomers.

Further, diaphragm liquid pumps are efficient depending on their flex life, what the fluids to be pumped consist of, and how the fluids affect the diaphragm.

  1. Cleaning Jobs

Cleaning is regarded as one of the practical and readily visible applications of diaphragm pumps. Thanks to their ability to produce a suitable amount of pressure, they’re usable in a myriad of cleaning situations. For instance, the pumps are used in the creation of the powerful jets required for spray washers utilized in high-pressure cleaning jobs.

  1. Construction Purposes

Diaphragm pumps are fit for construction because of their durability, ease of cleaning, and the fact that they can withstand the effects of heavy machinery on construction sites.


With the discussion of the uses and applications above, diaphragm pumps are a breakthrough for many industries and fields, including automotive, ceramics, chemical processing, mining, and consumer goods production. The pumps’ flexibility, reliability, and cost-effectiveness give them a cutting edge and make them the top choice for managers and other key stakeholders.
